Picture Title: TEARDROP THROTTLE
Location:
Photographer: Steve Claude
Submission Date: 1/20/2010 9:03:45 PM

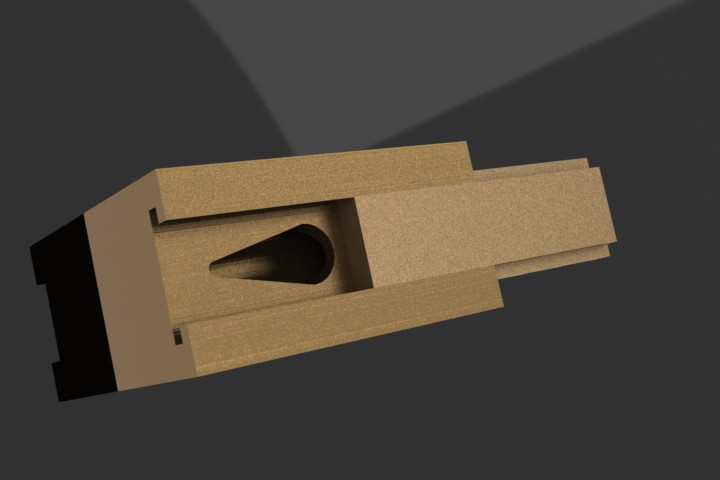

Comments: Quick sketch of Charlies "tear drop throttle". I still have to design the linkage, but this should be what you were talking about.
Gallery Category: Projects
Technical Information:
Shooting Location:
Owner:
Locomotive Name or Road:
Locomotive or Car Type: Steam Locomotives
Whyte Classification Numeric:      Name:      Layout:     Class:
Track Gauge: 7.5
Scale:
Enter A Comment For This Photo:
First Name
Last Name
Location (City, State, Country)
Critique or Comment
Validation
Validation Code Entry

Enter the word displayed in the above image

Photo Comments:
Critiqued 1/20/2010 10:05:10 PM by Phil  Cohen, Torrance
I think that design will have some problems with leakage. In order to allow it to slide you will have to make it a loose fit as the metal will expand when it gets hot. I guess the pressure on the outside will press it against the block and stop leaks but you will have a lot of friction on the plate, kind of like the American.

I think the teardrop that charlie was talking about was the shape of the plunger in a sort of gate valve. Instead of a flat plate there is a teardrop shaped plunger that seals. Kind of like a shaped needle valve.




  Comment Response Entered: 1/21/2010 7:25:29 AM  By: Steve   C - RPV
OK design 2 coming later. Thought I saw on like this somewhere.
  Comment Response Entered: 1/21/2010 8:04:22 AM  By: tom   d - lakewood
the one I have used in the past on other things was a barrell tpye vave that has a off set built into it.the club atlantic looks to have this type of throttle on it.in the past I would have sad not to pull it apart to see how its built but now Im thinking we should take a good look at it to see what its all about as that info may help with other club members projets .I think joe got charlee thinking about this when he was showing him that loco.its alwas one of the things joe points out when showing the loco and says tis the best working throttle hes used.
  Comment Response Entered: 1/21/2010 5:12:46 PM  By: Charlie   Giordano - Torrance, CA
this is what i want to put in the american! wouldnt be that instant wheel spinning and would be easies gettin up grade. They are rely nice and smooth!
Enter a follow up critique to this one, or click on the image to add a fresh critique.
Critiqued 1/21/2010 5:15:27 PM by Charlie  Giordano, Torrance, CA
hay this isnt just a cean tear drop shaped whole right? it has an angle to it

  Comment Response Entered: 1/21/2010 6:19:15 PM  By: Steve   C - RPV
Look at design 2 it should work better. Just brainstorms.
